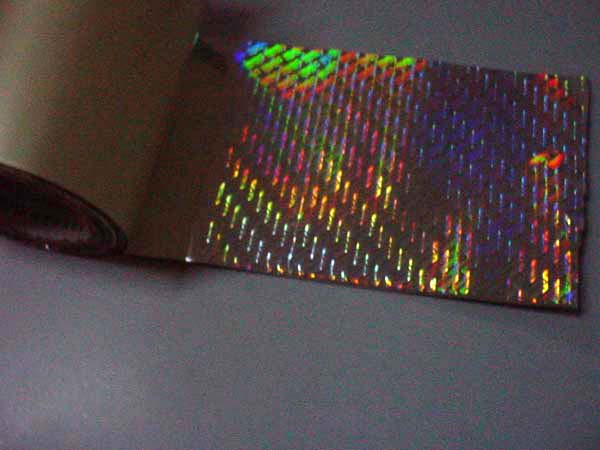

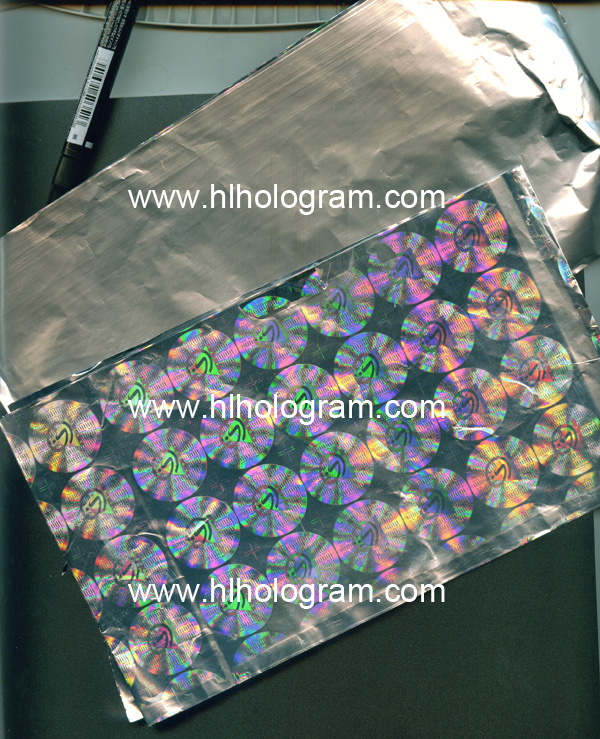

Aluminum Foil offer security protection in blisters covering medicine pills for pharmacy industry.

There're two kind of hologram made on pharmaceutical blister foil. One is to transfer hologram onto blister foil by hot stamping foil process. Another is direct hologram embossing onto aluminium blister foil. We supply equipment and material to make both type hologram onto pharmaceutical blister foil.

Type A. To transfer hologram onto pharmaceutical blister foil by hot stamping process.

We have to make hologram master origination and produce hologram hot stamping foil first. Then we can trasnfer hologram onto foil with below rotary hot stamping machine. The width hologram area transfered onto foil can be controlled with different hot stamping cylinder.

Rotary hot stamping machine can transfer hologram strip onto paper, blister foil and plastic film. This hot stamping machine make hologram continous in reel format and transfer hologram in high speed to produce hologram paper sticker, holographic strip on security document and hologram scratch off holograms.

This hologram rotary hot stamping machine have two kind of side guide funture and do hot stamping process and slitting process in same time. Register hologram also can be transfer onto paper sticker and then cutting with our automatic die-cutting machine.



Type B. Our hologram aluminium foil also can be embossed by hard hologram embosser directly. This direct embossed hologram blister aluminum is not so shining as hot stamping hologram aluminium foil which is transfered from hot stamping foil. But its hologram image won't diapear or decrease under high tempreture of 200 degree.



Our hologram aluminum foil is cost-effective.

Holographic Aluminum foils are easily used on all the standard blister-packaging machines.





Below is three models of our hard hologram embosser

Hologram Hard Embosser Mold 1

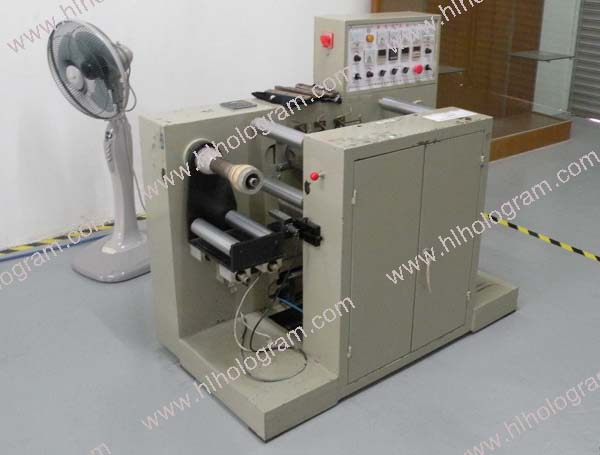

New Mode Simple Narrow Web Hard Hologram Embosser with side guide or without side guide

Narrow web hard hologram embosser is designed for producing 160MM width hologram products, such as hologram labels, narrow web hologram film, hologram aluminum foil, hot stamping foil, etc. It consisted of three parts: embossing unit, heating system and control panel.

This single control panel can adjust temperature, pressure and speed very easily.

Hologram film is embossed with speed which is 1000 meters per hour.

There're three cylinders for this embosser

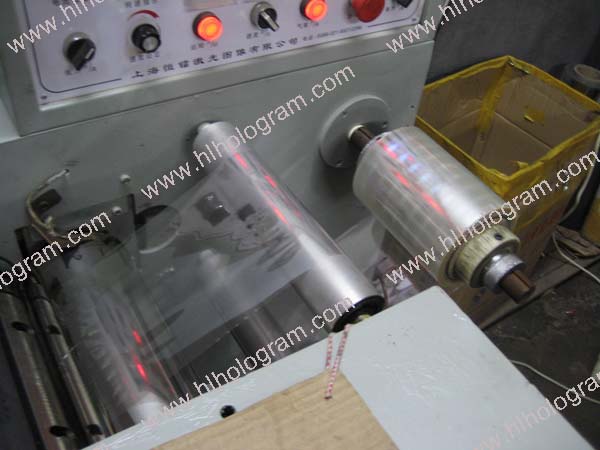

Transparent hologram film also is embossed fast with this hologram printing equipment.



Updated model also have side guide function which can improve the alignment when embossing.

Updated model also have side guide function which can improve the alignment when embossing.

Specifications:
1. Max embossing dimension : 160*156MM/sheet
2. Embossed film thickness: 0.012MM-0.12MM
3. Max rewind & unwind rolls diameter: 500MM
4. Temperature scope: 0-180¡æ(Adjustable)
5. Embossing speed: 0M-30M/Min(Adjustable)
6. Counter scope: 0-99999 (Adjustable)
7. Shim size: <160*156*0.05 MM
8. Shim lift: 5,000M-10,000M/Shim
9. Voltage std.: 220V 50HZ
10. Power consumption: 3KW
11. Compressed air needed: 0-5Kg/cm2 (Adjustable)
12. Embosser dimension: 1300MM*750MM*120MM
13. Embosser weight: 600KG

Hologram embosser cylinder photo

Hologram Hard embosser Model 2

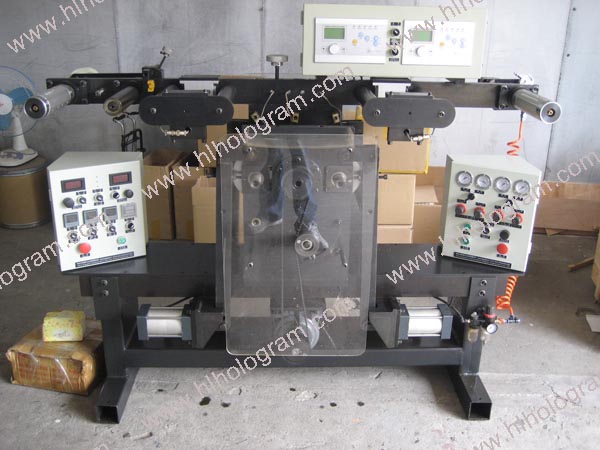

Auto Tension Control Narrow Web Hard Hologram Embosser

Narrow web hard hologram embosser is designed for producing 160MM width hologram products, such as hologram labels foil in roll which has precise gap between two stickers. Sticker embossed by this embosser can be applied automatic by sticker application machine. Comparing to similar model embosser made in USA and Germany, our embosser has same quality and much lower price. This hologram embosser can emboss slim hologram seal of cigarette packaging.

Auto Tension Control Narrow Web Hard Hologram Equipment

Characteristics:

1.Rectify a deviation and put one automatically, rewind smoothly with little deviation..
2. Intellectual temperature control, it is accurate in temperature control when embossing.
3. Automatic control or manual control to set unwind and rewind parameter,
4. Automatic control or manual control to adjust juction of hologrma nickel shim.
5.The structure is reasonable in design, it is flexible and convenient to dismantle
6.Side guide
7.Auto or manual tension control

Auto Tension Control Narrow Web Hard Hologram Equipment

Specifications:
1. Width of door: 300mm(MAX)
2. Embossing are: 152.4mm(standard)----161.0mm(customized)
3. Power : 220V or 380V, 4KW
4. Air pressure when embossing : 8kg/cm2(0.8mpa)
5.Dimension: 1850MM*900MM*1200MM
6.Weight: 700kg

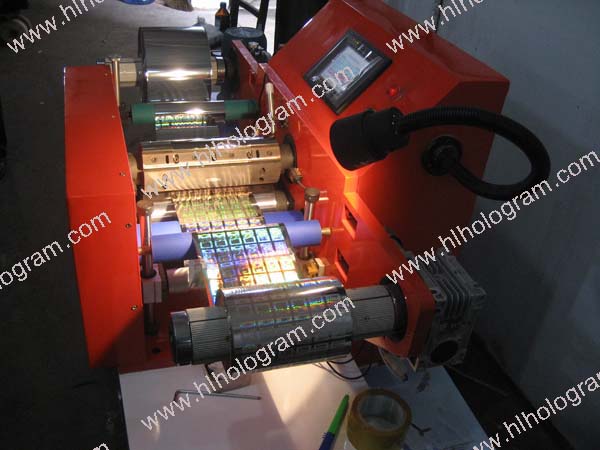

Seamless Hologram Hard embosser Model 3

Advance model seamless embossing hologram embosser for hologram hot stamping foil or hologram sticker in roll format

This hologram embosser make embossing hologram roll in precise gap with any distance. The hologram made by this embosser have precise gap. So the hologram sticker roll or hologram hot stamping foil is suitable for simple automatic application.

Hologram PET film is embossed continously with same gap precisely.

Hologram PET film is embossed continously with same gap precisely.



Type of Master Origination of Hologram Taope and Hologram Seal

DOT-MATRIX Hologram

2D/3D Hologram

Flip-Flop Hologram and Kinematic movement in hologram

Hidden text and micron text in hologram
