We took some photoes of hologram making. It'll help you to understand how we make holograms. You are welcome to visit our factory to see all running machines in process of production.

To set up a production line includes electronif forming machine, embossing machine, Lamination machine and auto die-cutting machine to produce 2 millions pcs security holographic sticker in size of 15mm*15mm per day. To produce hologram hot stamping foil, just need to buy one more small coating machine.

Affordable Hologram Machinery   Hologram Sticker Production Photoes    Hologram Hot Stamping Machinery and Project

Below is some hologram sticker production process photoes Page 1    Page 2     Page 3

Updated new one step 2D 3D Hologram shooting lab.

hologram laser

Above He Cd Laser cover is removed. You can see blue beam in two side of laser.

hologram laser photohologram laser

The laser beam come through the front side glass.

hologram laser

Above He Cd Laser cover is removed. You can see blue beam in two side of laser.

hologram laserLaser with UPS

He-Cd laser for the 2D/3D hologram recording onto photoresist & He-Cd laser with UPS supplier which avoid laser power stop expectedly.

The helium cadmium laser wave length is 441.6nm. So it can record hologram onto photoresist easily. There's other laser also can record hologram image in lab, also is available for embossing hologram production. Laser controller controls the He Cd laser on/off automatic cadmium current supply trigger.



laser ebam

He-Cd laser beam. The helium cadmium laser beam is blue light. For interference lithography to be successful, coherence requirements must be met. First, a spatially coherent light source must be used. This is effectively a point light source in combination with a collimating lens. The spatial coherence guarantees a uniform wavefront prior to beam splitting. Second, it is preferred to use a monochromatic or temporally coherent light source.The monochromatic requirement can be lifted if a diffraction grating is used as a beam splitter, since different wavelengths would diffract into different angles but eventually recombine anyway. Even in this case, spatial coherence and normal incidence would still be required. To get more information, please visit link: Affordable Hologram Machinery

hologram laser

All optics including hologram len, shutter, beam splitter, mirror, filter, magnifier, etc are set up on optical table.



hologram opticalhologram optical

Vibration Free Optics Table for hologram & He-Cd laser beam. Hologram is carried out on an optical table, which has special vibration reduction systems, since vibrations of as little as a few micrometers can completely wreck a hologram. Optical element includes, beam splitter, mirror, magnifier, pinholes, diffuser plate, cylindrical lens, plano convex lens, etc.



Laser with UPSLaser with UPS

Optics table & holographic master shooting room. Hologram Len and optical on vabration free optics table.



master shooting roomdark room

He Cd laser and optical table with optics to record hologram onto photoresist by inferfference. To shoot holographic master in big size foreground, you need on dark room to make mask glass or H1 hologram glass developing room. To get hologram image onto photoresist, we also should develop it.



hologram master shooting roomhologram shooting room

New type 2D 3D holographic master shooting table and optics.

2D/3D holographic master origination photo. 2D/3D Hologram is made up of multiple two dimensional layers with holographic images visually placed one behind another with visual depth to produce an effect of three-dimensional holographic structure. It has very good visual depth between different layers and shininess on first layer. To understand how 2D 3D hologram made, please visit What does 2D 3D Hologram mean and how 2D 3D hologram is made?



Classical type 2D 3D Hologram shooting lab.



master shooting roommaster shooting room

Hologram simple 2D 3D system combines classical hologram system.



master shooting roommaster shooting room

Classical hologram lab and optics.



master shooting roommaster shooting room

H1hologram glass making and hologram H1 glass to image reappearance.



master shooting roommaster shooting room

2D/3D Hologram grating and H1 hologram glass developing.



master shooting roommaster shooting room

Laser for 2D 3D hologram making.

2D/3D Hologram is made up of multiple two dimensional layers with holographic images visually placed one behind another with visual depth to produce an effect of three-dimensional holographic structure. It has very good visual depth between different layers and shininess on first layer. To understand how 2D 3D hologram made, please visit What does 2D 3D Hologram mean and how 2D 3D hologram is made?



Electronic forming system and electronic forming tank to make nickel holographic master origination



master shooting roommaster shooting room

Two set hologram electronic forming tank. One is soft tank, another is hard tank.



master shooting roommaster shooting room

2D/3D holographic master origination photo & Dot-matrix holographic master origination photo. Dot-Matrix holographic label allows implementing unlimited computer controlled and laser beam engraved dots in holographic. This Dot-matrix holographic is the result of designs comprising many tiny dots, where each dot is a separate diffraction grating. They create a beautiful impact of variable images. To understand how dot-matrix hologram made, please visit What does dot-matrix mean and how dot matrix hologram is made?

Hologram origination and hologram operation nickel after electronic forming



Dot-matrix Hologram2D/3D Hologram master

2D/3D holographic master origination photo & Dot-matrix holographic master origination photo. The right shim is the copy of origination.



2D/3D holographic master origination photo & Special master.



Dot matrix Hologram shooting lab.



Dot-matrix Hologram masterDot-matrix Hologram master

Dot-matrix holographic master and dot-matrix system. This old dot-matrix system with circle dots and helium cadmium laser wave length is 441.6nm.



Dot-matrix hologram system with square dot, 1270 dpi, 635 dpi

master shooting roommaster shooting room

Dot-matrix Hologramequipment. This old dot-matrix system with square dots and small laser..



master shooting roommaster shooting room

Dot-matrix Hologram system laser and focus optics



master shooting roommaster shooting room

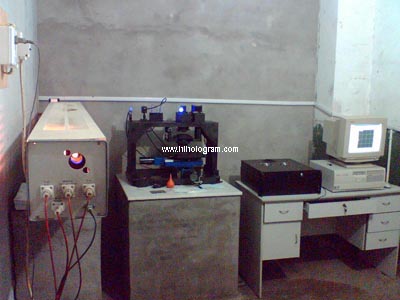

Dot-matrix Hologram system PC to control process and laser engraving platform



master shooting roommaster shooting room

Dot-matrix Hologram system lens and hologram glass



master shooting roommaster shooting room

Dot-matrix Hologram system PC to control process and laser engraving platform

hologram laser

Hologram Dot-matrix system



Hologram EmbossingHologram Embossing

Hologram embossing and hologram embosser sylinder



Hologram Pictures



HologramHologram

Holographic sticker, instant hologram smaple in stock.



HologramHologram

Holographic sticker, instant hologram smaple in stock.



HologramHologram

Hologram dot-matrix effect photo, Holographic sticker, instant hologram smaple in stock and custom hologram



HologramHologram

Hologram dot-matrix effect photo, Holographic sticker, instant hologram smaple in stock and custom hologram



HologramHologram

2D/3D Hologram photo & Dot-matrix Hologram photo



HologramHologram

Tamper proof hologram and VOID hologram



HologramHologram

2D/3D Hologram, honeycomb & Security Holographic Sticker



HologramHologram

2D/3D Hologram, in stock, instant hologram



HologramHologram

Hologram, in stock, instant hologram



HologramHologram

Hologram, in stock, instant hologram. Tamper evident hologram



HologramHologram

Hologram pouch and ID hologram in stock



HologramHologram

Hologram pouch and ID hologram in stock



HologramHologram

Dot-matrix Hologram with animated movement



HologramHologram

2D/3D Hologram photo & Dot-matrix Hologram photo



Hologram

Dot-matrix Hologram with animated movement



HologramHologram

Hologram cutting



2D/3D holographic master origination photo & Special master
